OUK-02-1 (OK-BETA PLUS)

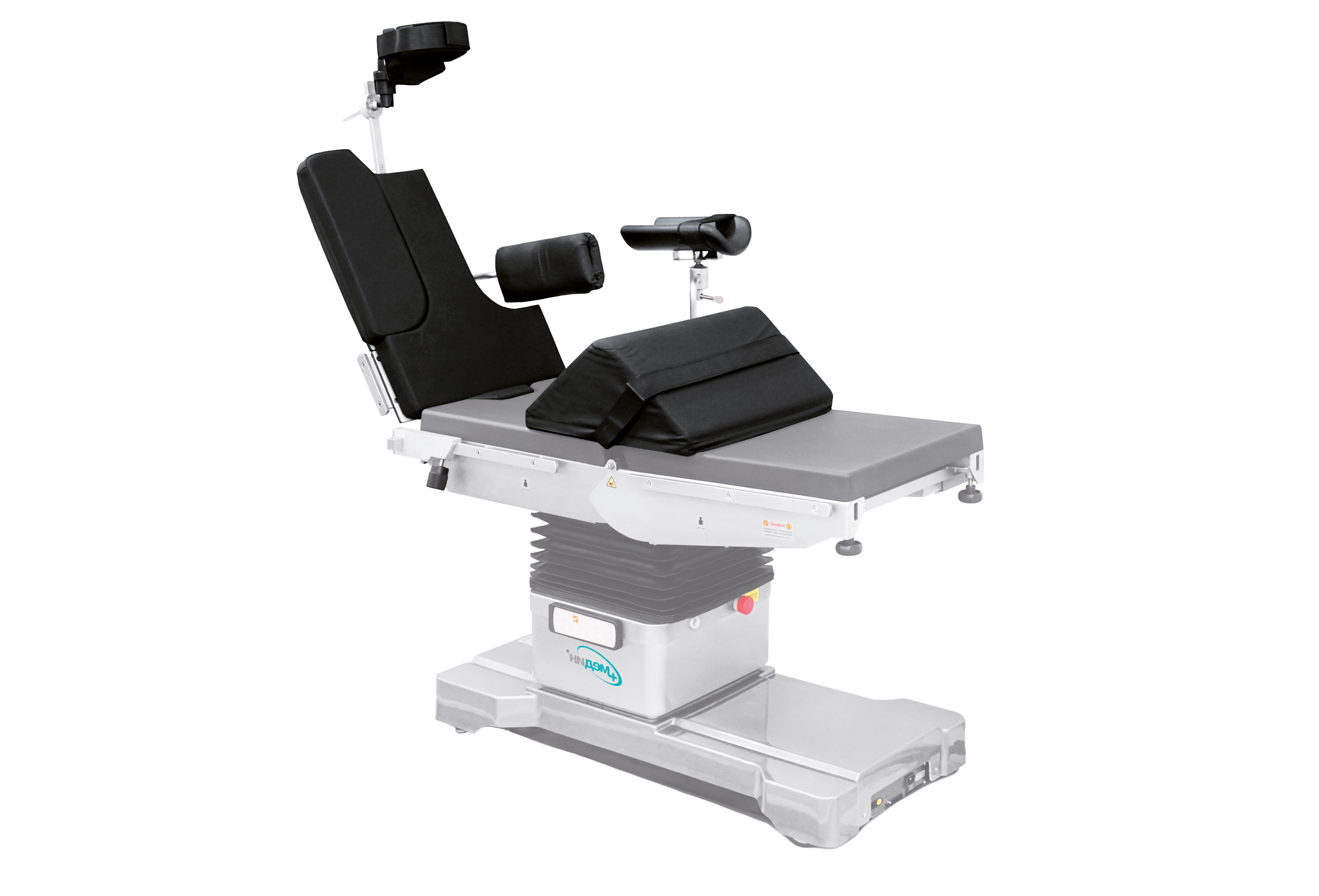

OUK-02-1 (OK-BETA PLUS) is an electrohydraulic operating table with an additional backup hydraulic drive.

This table model meets the requirements of modern surgery and is an ideal solution for a high-level operating room. The use of additional accessories produced by the manufacturer makes it possible to expand table functionality.

A well-thought-out design solution for the double drive system of OUK-02-1 (OK-BETA PLUS) operating table ensures high reliability and uninterrupted operation of the surgical team in case of an emergency (power failure or insufficient battery charge).

The low position of the table provides the necessary access and comfortable conditions for the work of the surgical team during complex multi-hour operations that require low patient positioning.

Table top is adjusted with the help of the remote control. There is an additional remote control on the column, duplicating the main movements.

Table top of OUK-02-1 (OK-BETA PLUS) has a dorsal section bending, which is controlled mechanically using a crank handle.

Built-in castors make it possible to move the table freely inside the operating room.

Features:

• All open metal surfaces and additional accessories are made of stainless steel
• Table base and column are protected by stainless steel covers
• Molded protective cover of the adjustment mechanism

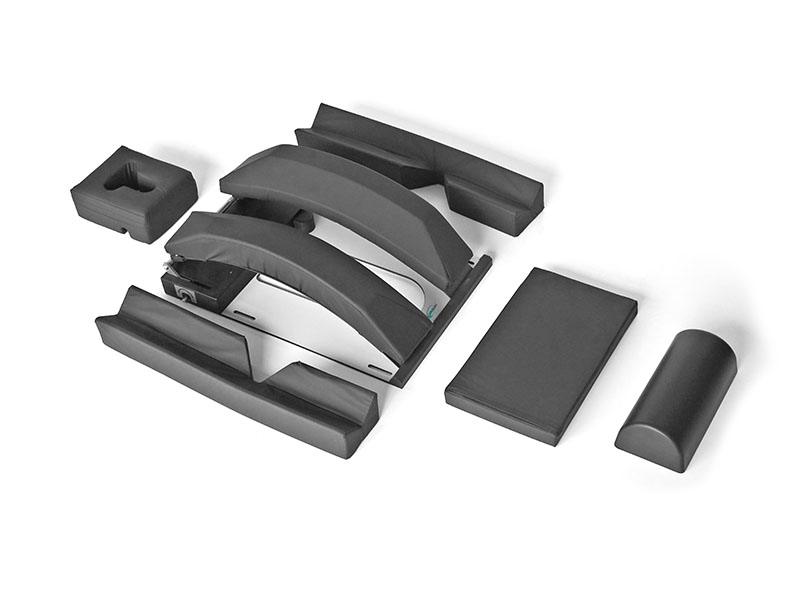

• Using seamless technology, molded removable mattresses made from integral polyurethane foam with an antistatic effect, and an innovative antimicrobial treatment (Ultra Fresh)
• Split, removable leg sections with rotation and tilt drive
• Head section with two tilts
• 6 section table top
• Longitudinal shift up to 320 mm
• X-ray translucent table top
• C-Arm compatible
• Input of the X-ray film cassette from head eg sections

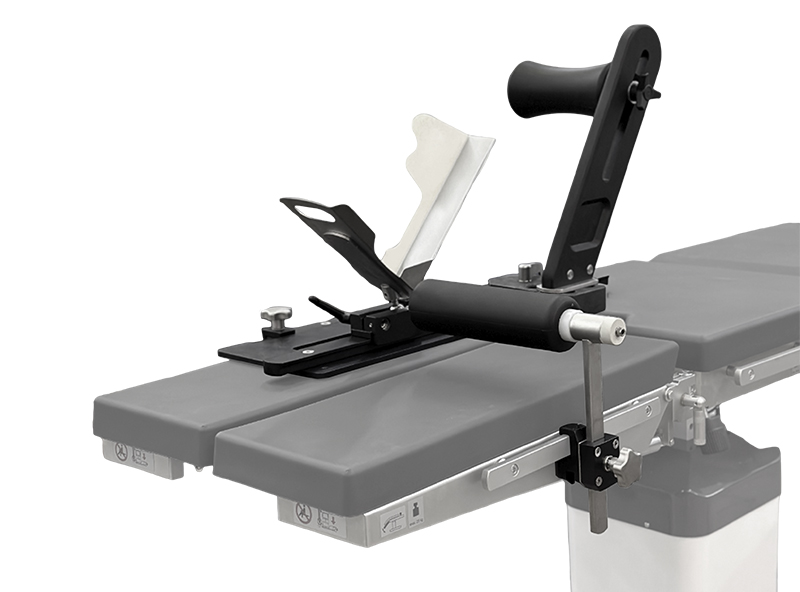

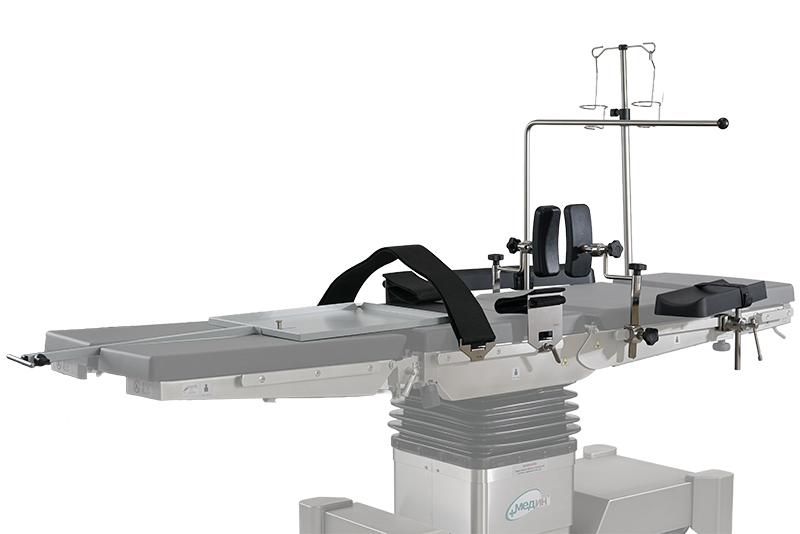

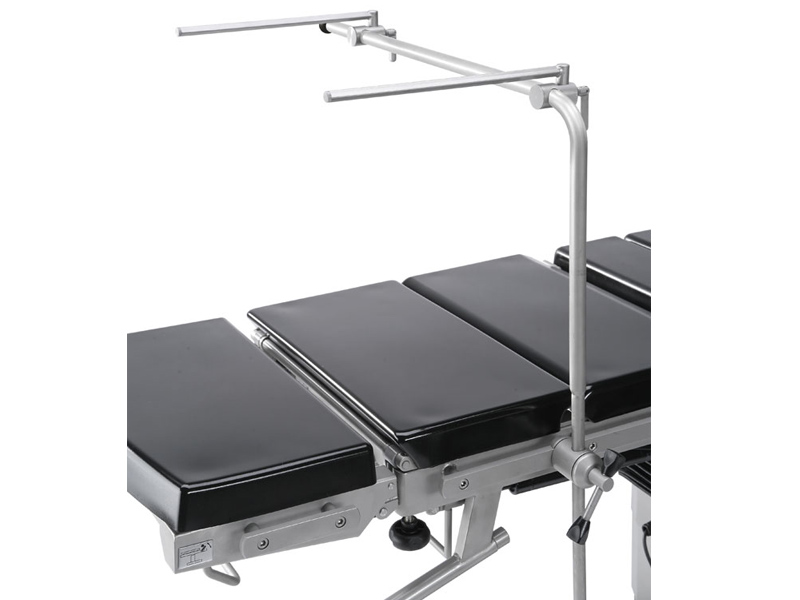

• Can be used with wide range of additional accessories

Adjustments:

• Lifting/lowering of the table top – electrohydraulic / mechanohydraulic
• Longitudinal tilts – electrohydraulic / mechanohydraulic
• Lateral tilts – electrohydraulic / mechanohydraulic
• Dorsal section adjustment – electrohydraulic / mechanohydraulic
• Longitudinal shift – electromechanical
• Return table top to zero position - electrohydraulic
• Dorsal section bending – mechanical
• Leg and head section tilts – mechanical by gas spring

Used with the following KPP sets:

• Wireless remote control

• Pedal control panel

Recommendation:

• Min. table top height (without mattress), not more than 630 mm
• Max. table top height (without mattress), not less than1080 mm
• Table top length, not less than2100 mm
• Table top length (without head and leg sections), not less than1100 mm
• Table top width, not less than500 mm
• Table top width (incl. side rails), not less than550 mm
• Table base height, not more than230 mm
• Table base length, not more than 1130 mm
• Table base width, not more than530 mm
• Table base niche depth (from the leg section side), not less than20 mm
• Longitudinal tilt (Trendelenburg/reverse-Trendelenburg position), not less than -30º/+30º
• Dorsal section tilt (up/down), not less than+75º/-45°
• Head section tilt (up/down), not less than +30º/-35°
• Leg section tilt (up/down), not less than+30º/-90°
• Lateral tilt (right/left), not less than+20º/-20°
• Longitudinal shift (optional), not less than320 mm
• Max. head section shift, not less than50 mm
• Lifting height of the dorsal section bending (optional), not less than105 mm

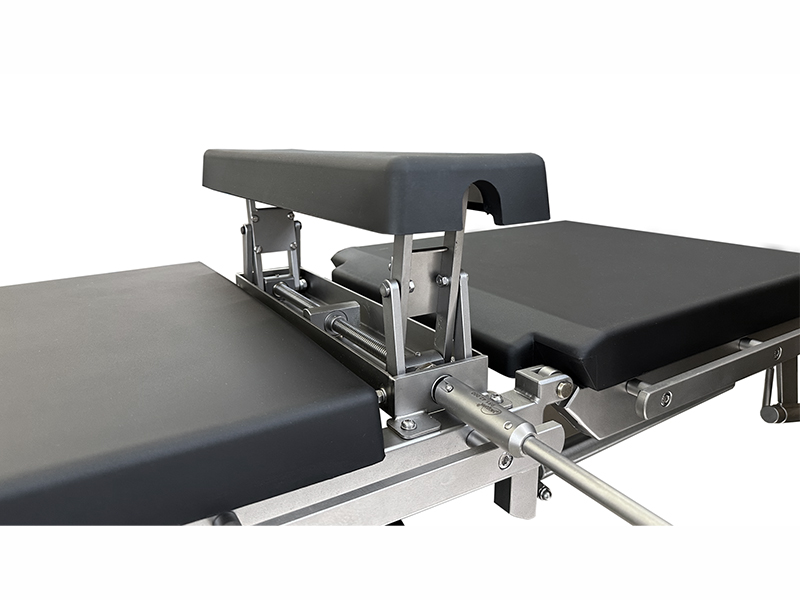

• Lifting height of the kidney bridge (optional), not less than140 mm
• Safe working load, not less than 250 kg
• Safe working load (with functions limitation)350 kg
• Table weight (without sets of accessories), not more than300 kg
• Power network settings~ 230 V, 50 Hz
• Maximum table load450 kg
