Medical surgical luminaire SMH-E1

Truly innovative medical surgical luminaire SMH features the exclusive and patented FOCUSMATIC and MOTION-MATIC technologies as well as intelligent LED management and control.

Compact and reliable, SMH surgical luminaires offer excellent value for money, making innovation accessible to all.

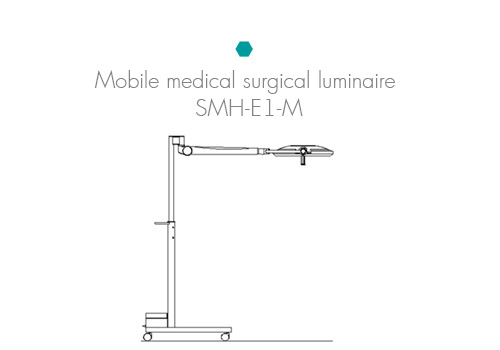

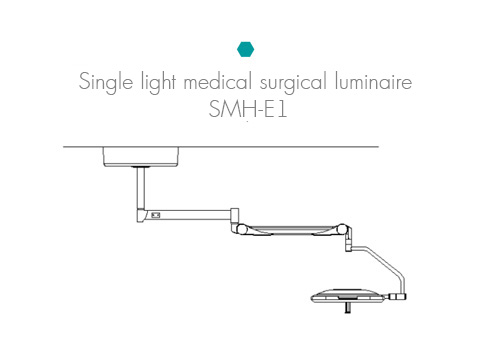

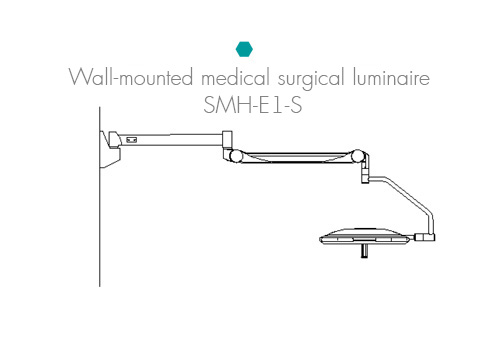

Available configurations:

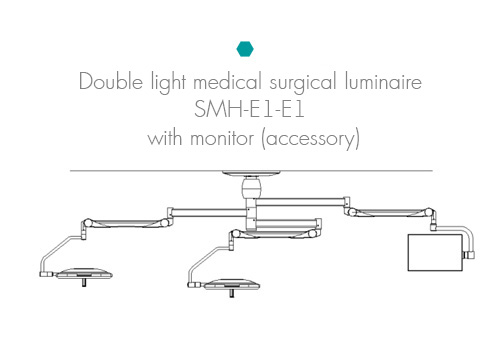

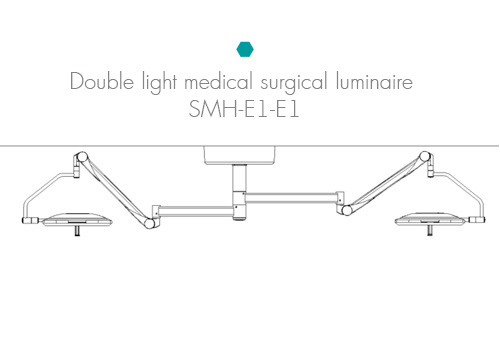

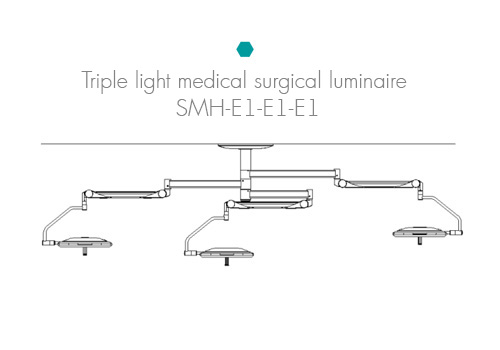

Ceiling-mounted suspensions allow unlimited rotation and integration of arms for a camera or monitors, in addition to the lighting cupolas.

These configurations are presented as examples. Other configurations are also possible. Please contact us for a personalized proposal.

Attention!

The information presented on the website has an advertising nature. For up-to-date information on product design and its technical characteristics, please contact our sales department!

• Light sourceLED
• Maximum central lighting (Ec)*160 000 Lux
• Adjustable illumination intensity*From 50 000 to 160 000 Lux
• Endoscopy mode : “ENDO”Yes
• D10* Field diameter22-26 cm
• D50* Light distribution13-18 cm
• Depth of field L1+L2 (60% Ec) 2008*77 cm
• Depth of field L1+L2 (20% Ec) 2003*128 cm
• FocalizationElectronically adjustable diameter of the illuminated field, with constant central illumination. With no mechanical movement
• Lighting control by the sterile staffGesture control of the 3 lighting parameters (light intensity, focus, colour temperature)
• Colour rendering index Ra*96
• Red colour rendering R9**96
• Colour temperature*From 3500 to 4500 K
• LED life time60 000 h
• HD video preparationOptional
• Minimal disruption of laminar flow system (DIN 1946-4)432%
• Medical surgical luminaires SMH comply with the standards IEC 60601-1, IEC 60601-1-2 and IEC 60601- 2-41
