MEDIN-SAFIS-03 X-ray surgical table (for urology and brachytherapy)

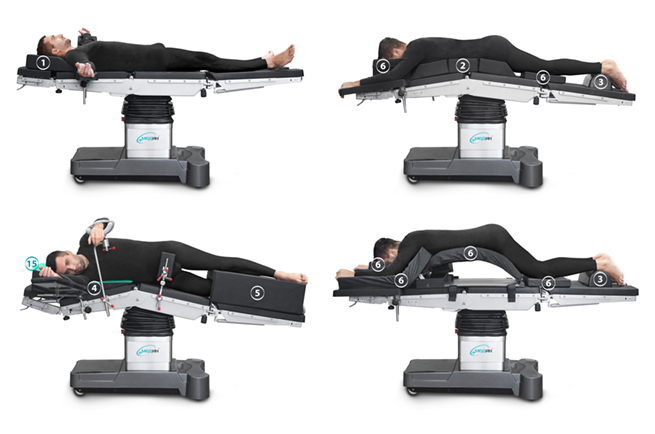

X-ray surgical table MEDIN-SAFIS 03 is best solution for wide range of X-ray surgery diagnostic and treatment procedures with the use of C-arm unit. Material of table top is engineering plastic. Ergonomic table base allows using various equipment freely during procedures and manipulations. X-ray surgical table MEDIN-SAFIS 03 can be adjusted in height, lateral and longitudinal movement, and there is a possibility of lateral and Trendelenburg (anti-Trendelenburg) tilt. Therefore you can choose the optimal height required for the operation. There is ability to interact with integrated OS via Bluetooth, RS485 and other interfaces.

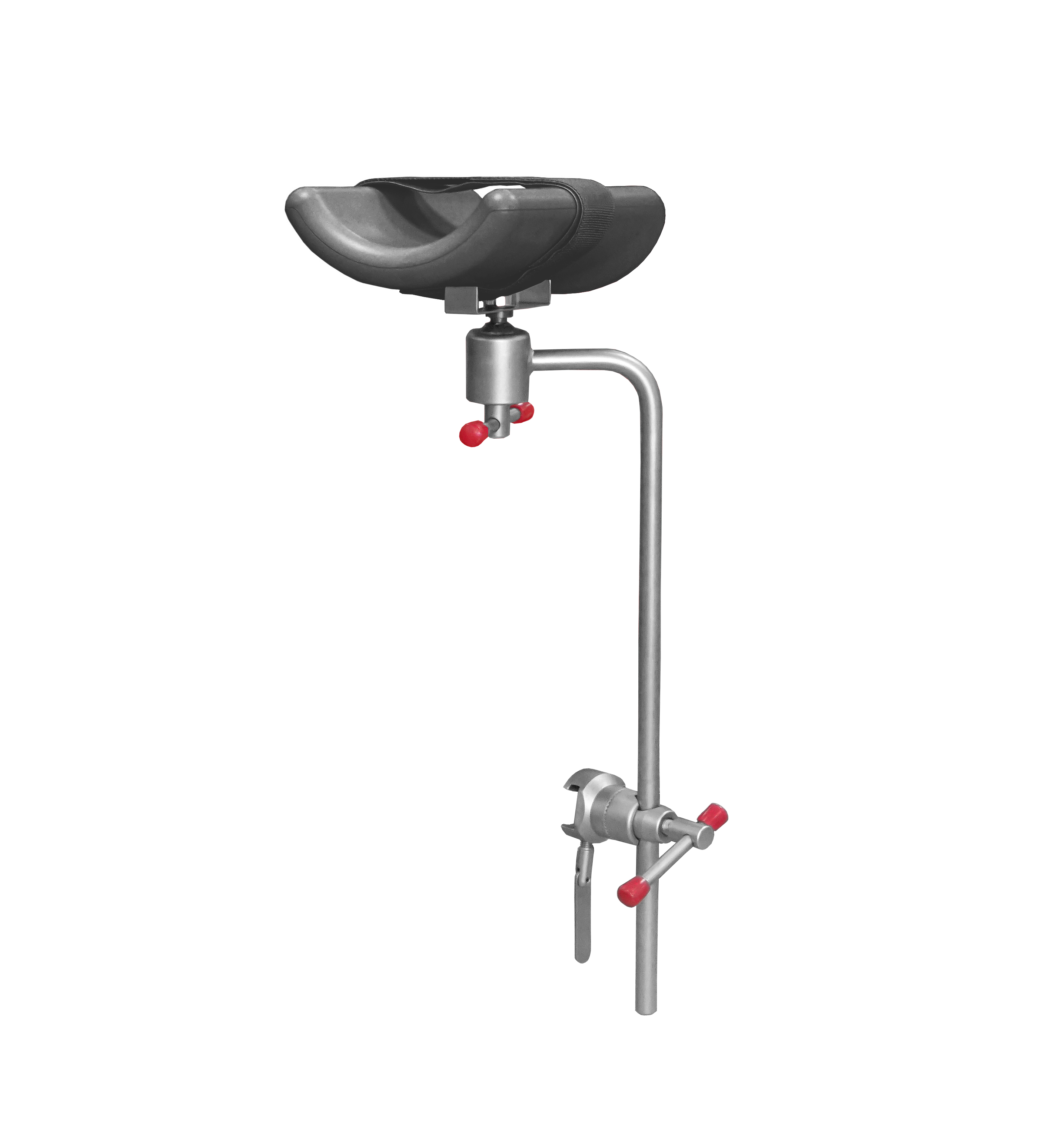

The KPP-18 set of additional accessories for surgeries leg positioning according to Goepel is included.

Features:

Table top return to the ZERO POSITION
Stainless steel side rails for accessory mounting
Height adjustment, tilts and shift of the table top is carried out by electric drives with the help of various remote controls
Stroke speed change of the table top
Emergency stop function
Automatic locking of movements to prevent damage to the table

Adjustments:

Lifting/lowering of the table top - electromechanical
Longitudinal tilts - electromechanical
Lateral tilt - electromechanical
Longitudinal shift – electromechanical
Lateral shift – electromechanical
Back section tilt - gas springs

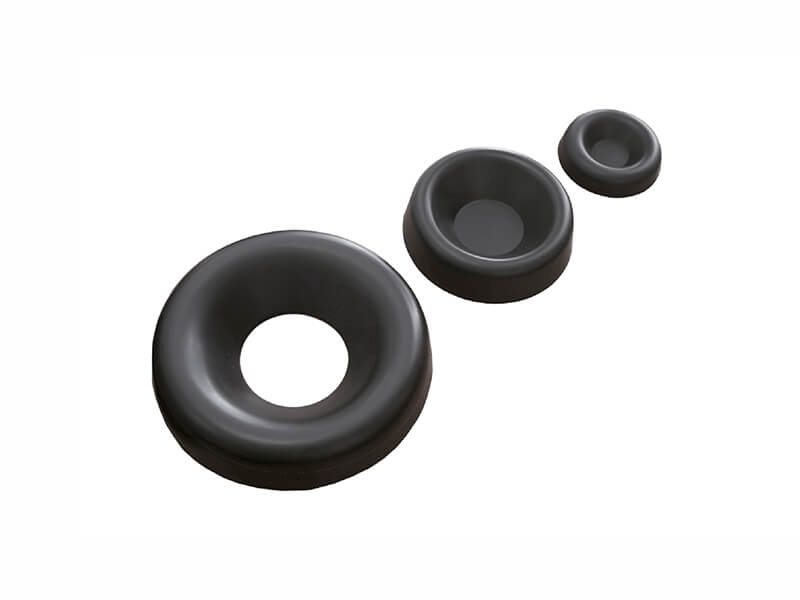

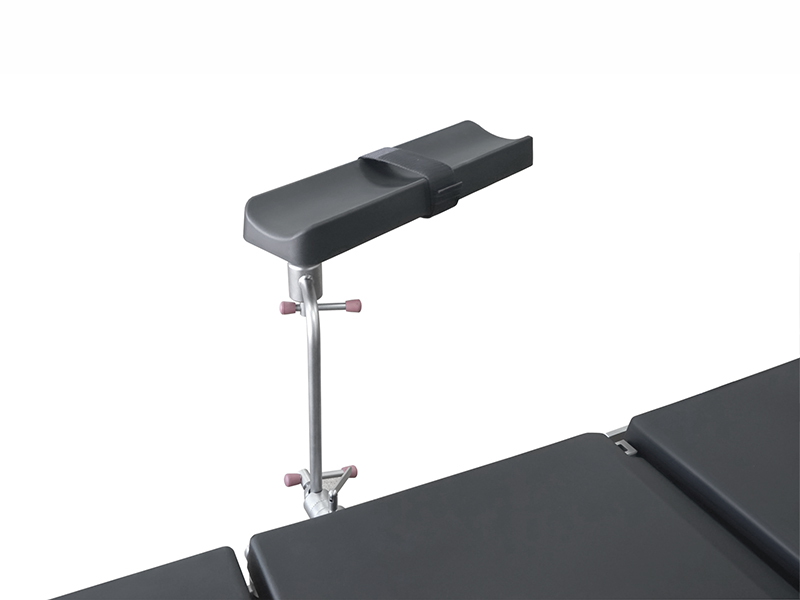

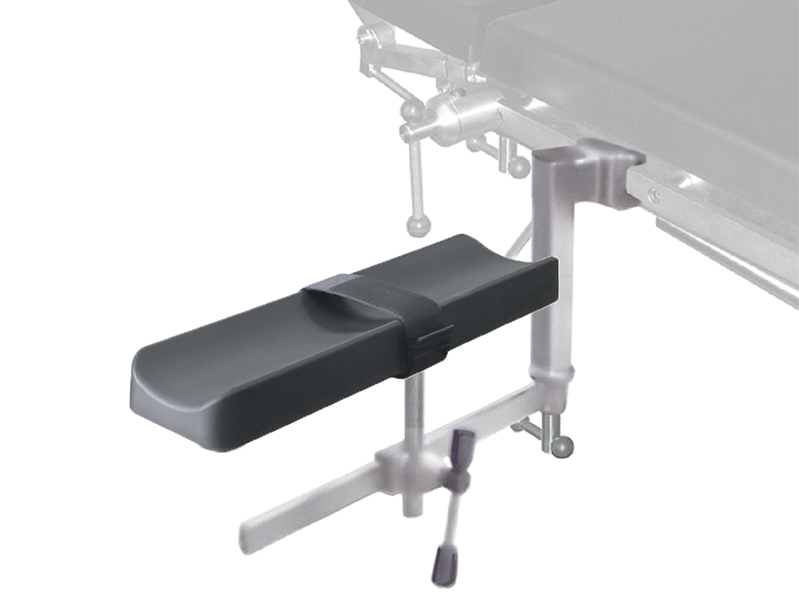

Used with the following KPP sets:

15 16

18

26

30 31 32

33

37 38 39 40

41 42 43

Additional options:

Container with lateral support
Leg section

Recommendation:

During operations to support the patient's legs, we recommend the use of surgical legs support set

Warranty 24 months

Attention!
The information presented on the website has an advertising nature. For up-to-date information on product design and its technical characteristics, please contact our sales department!

Table height in upper position (without mattress), mm1090
Table height in lower position (without mattress), mm790
Table top length (without leg section), mm 1370
Table top length (with leg section), mm 2100
Table top width, mm 540
Table top width (incl. side rails), mm 590
Longitudinal tilt (Trendelenburg/reverse Trendelenburg), degree±23
Lateral tilt, degree±18
Dorsal section tilt, degree75
Longitudinal shift, mm490
Lateral shift, mm200
Safe working load, kg220
Adjustmentselectromechanical drive
Operation control remote control, operating console, joystick
Table top X-Ray attenuation (without mattress) equals aluminum equivalence, mm about 1,5
Side rails size, mm10x25
Castor size (with brakes), mmØ125
Castor size (without brakes), mmØ100
Table weight, kg300
Batteries charging time, h5...6
Supply voltage230 V, 50 Hz
Protection degree (according to GOST 14254)IPХ4
Maximum table load270 kg
