OU-01K (MEDIN-ALFA)

OU-01K (MEDIN-ALFA) is a mechano-hydraulic operating table.

This model is intended for regional, district and city hospitals, both for general and specialized surgeries while combined with sets of additional accessories produced by the manufacturer.

Table top adjustments drives are located in the same place on the side of the head section which allows selecting and changing the table top position by using the pedal and the footswitch. Built-in castors make it possible to move the table freely inside the operating room.

The use of additional options makes it possible to change the configuration of OU-01K table top, thereby expands its functionality.

Features:

• All open metal surfaces and additional accessories are made of stainless steel
• Table base is protected by extra proof composite covers, table column covers – stainless steel
• Using seamless technology, molded removable mattresses made from integral polyurethane foam with an antistatic effect, and an innovative antimicrobial treatment (Ultra Fresh)
• X-ray translucent table top
• C-arm compatible
• Longitudinal shift up to 320 mm (optional)
• Input of the X-ray film cassette from head sections
• Head and split leg sections adjusted by gas springs
• Can be used with wide range of additional accessories

Adjustments:

• Lifting/lowering of the table top – foot-operated hydraulic jack
• Longitudinal tilts – foot-operated hydraulic jack
• Lateral tilts – foot-operated hydraulic jack
• Dorsal section adjustment – mechanical by gas springs
• Longitudinal shift (optional) - mechanical
• Dorsal section bending (optional) – mechanical
• Table base lock – foot pedal
• Leg and head section tilts – mechanical by gas spring

Modifications:

• OU-01K - without dorsal section bending and table top longitudinal shift
• OU-01K-1 - dorsal section bending
• OU-01K-2 - table top longitudinal shift
• OU-01K-3 - dorsal section bending and table top longitudinal shift

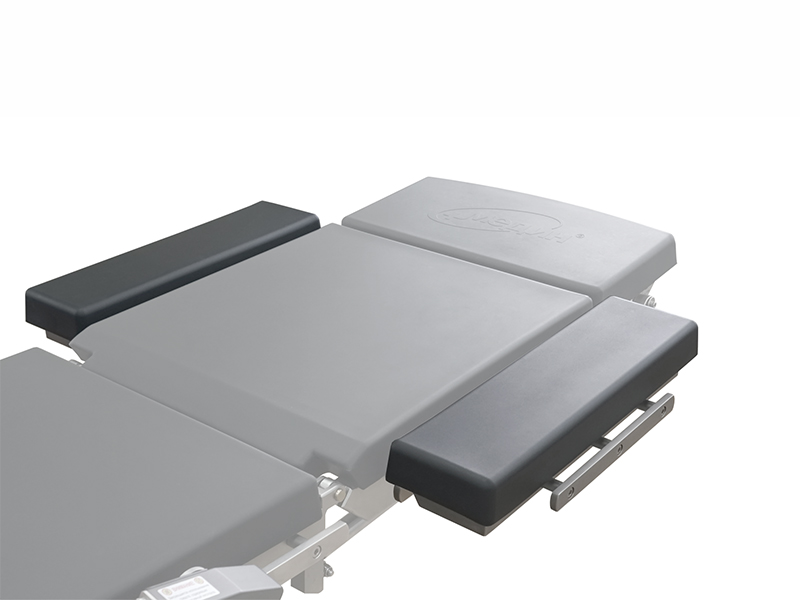

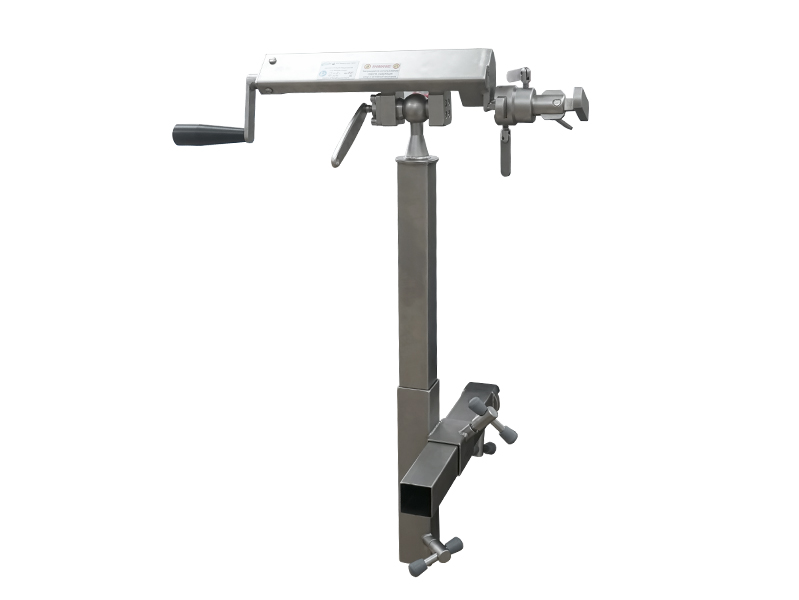

Used with the following KPP sets:

Recommendation:

Warranty 24 months.

• Min. table top height (without mattress), not more than720 mm
• Max. table top height (without mattress), not less than1020 mm
• Table top length, not less than2100 mm
• Table top length (without head and leg sections), not less than1100 mm
• Table top width, not less than500 mm
• Table top width (incl. side rails), not less than550 mm
• Table base height, not more than140 mm
• Table base length, not more than1055 mm
• Table base width (from the head section side), not more than560 mm
• Table base width (from the leg section side), not more than435 mm
• Table base niche depth (from the leg section side), not less than60 mm
• Longitudinal tilt (Trendelenburg/reverse-Trendelenburg position), not less than-30º/+30º
• Lateral tilt, not less than-20º/+20º
• Dorsal section tilt (up/down), not less than+75º/-45°
• Head section tilt (up/down), not less than +30º/-35°
• Leg section tilt (up/down), not less than+30º/-90°
• Max. head section shift, not less than50 mm
• Safe working load, not less than200 kg
• Safe working load (with functions limitation)300 kg
• Table weight (without sets of accessories), not more than210 kg
• Maximum table load320 kg
